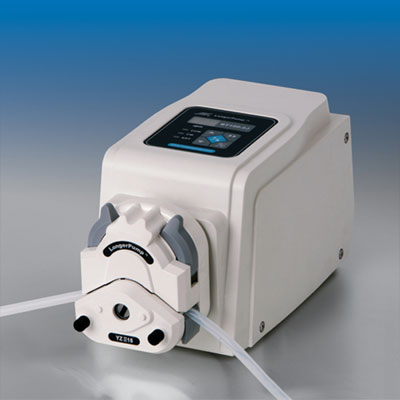

LongerPump BT100-2J Low Flow Rate Peristaltic Pump
Precise peristaltic pump BT100-2J can be loaded YZ1515X, YZII15,YZ2515X, YZII25, DG-1 and DG-2. The pump provides flow rates from 0.0002 to 380 ml/min. The speed can be adjusted manually or automatically through external control. Store the running parameters automatically. Easy to operate
Specifications
- Speed: 0.1 to 100 rpm, reversible
- Speed precision: 0.1 rpm
- Speed control: Membrane keypad
- Display: 3-digit LED displays current rpm
- Communication interface: RS485
- External control: Start/stop, cw/ccw control and speed control 0-5 V, 0-10 V, 4-20 mA and 0-10KHz
- Power supply: AC 90V-260 V 50/60 Hz
- Power consumption: ≤30 W
- Operating condition: Temperature 0 to 40 ℃
- Relative humidity < 80%
- Dimensions (L×W×H): 232×142×149 (mm)
- Drive weight: 2.3 kg
- IP rating: IP 31
Functions and Features
- Applicable pump heads: YZ1515X, YZ2515X, YZII15,YZII25, DG-1, DG-2
- Prime key for fast filling and emptying
- Adjust speed manually or automatically through analog interface.
- Memory function, storing the running parameters automatically
- Membrane keypad, easy to operate
- Good performance and low price
- Indoor use on

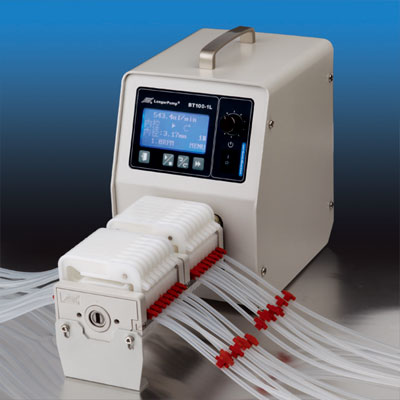

LongerPump BT100-1L Multi-channels Peristaltic Pump
The max. output torque of Multi-channels Peristaltic Pump BT100-1L drive is 1.65 N.m. Multi-channels pump heads are available. The pump delivers flow rates from 0.002 to 500 mL/min. 128 x 64 graphic LCD displays running menus and parameters setting menus. The flow rate and the speed (rpm) can be displayed in the same screen. The display interface is friendly. It has flow rate calibration function to make the flow rate more accurate. It has many control modes. The external control can be realized through standard external interface or RS485 communication interface.
|
|
|
- Speed: 1.0 to 100.0 rpm, reversible
- Speed resolution: 0.1 rpm
- Speed control: Rotary coded switch coupled with membrane keypad
- Display: 128 × 64 graphic LCD displays current running status
- External Control: Start/stop and cw/ccw control, 0 to 5 V, 0 to 10 V, and 4 to 20 mA speed control
- Communication interface: RS485
- Power supply: AC 220 V ± 10% 50/60 Hz (standard) AC 110 V ± 10% 50/60 Hz (optional)
- Power consumption: <50 W
- Operating condition: Temperature 0 to 40 °C, Relative humidity < 80%
- Dimensions (L × W × H): 202 × 160 × 239 (mm)
- Drive weight: 5.34 kg
- IP rating: IP 31
|
|
|
|
- Display can switch between flow rates and rpm
- Calibration capability for more accurate flow rate
- Graphic LCD together with rotary encoded switch makes it friendly and easy to use
- Higher torque to accept more pump heads and more channels
- RS485 communication interface available. Offering communication protocol to customer and customizing software according to customer's requirements.
|
